Description & Details
Summary
- The Original Orange 12v Winch
- Ideal for Recovery Trucks and 4x4's up to 3.5 Tons, Suitable for all Offroad or Recovery Operations
- Latest Technology Twin Handset Long-range Wireless Remote Controls and Backup Control Lead.
- Comes with 26m x 9.5mm of Galvanized Steel Wire Rope. 3/8 inch Clevis Hook Grade 70 Forged Steel. Safety Catch and Hand Saver. Zinc Plated For Corrosion Resistance
- Includes a Strong Winchmax Branded Winch Cover to Protect from Water and Road Grime.
13,500lb 12V Winch. 26m x 9.5mm Steel Rope. Flat Bed Mounting Plate. Description
WINCHMAX - The Original Orange Winch
WINCHMAX winches are designed by winch experts and are trusted by 4x4 users, recovery operators, emergency services and military customers worldwide. WINCHMAX doesn't compromise on build quality or performance and our winches are built for robustness and longevity derived from almost two decades of real-world use.
We are proud to provide a level of backup above and beyond industry standards to ensure your peace of mind. WINCHMAX winches are designed to be the benchmark by which other winches can be judged.
The Orange Winch
This is the original WINCHMAX winch that built our leading reputation. Incredibly tough, robust and reliable. This is the workhorse of the range designed for real work, day in and day out. Favoured by military, recovery and commercial operators all over the world.
Our outstanding performance and world-class backup will ensure that once you have owned a WINCHMAX winch, you will never look back.
WINCHMAX innovates where others imitate.

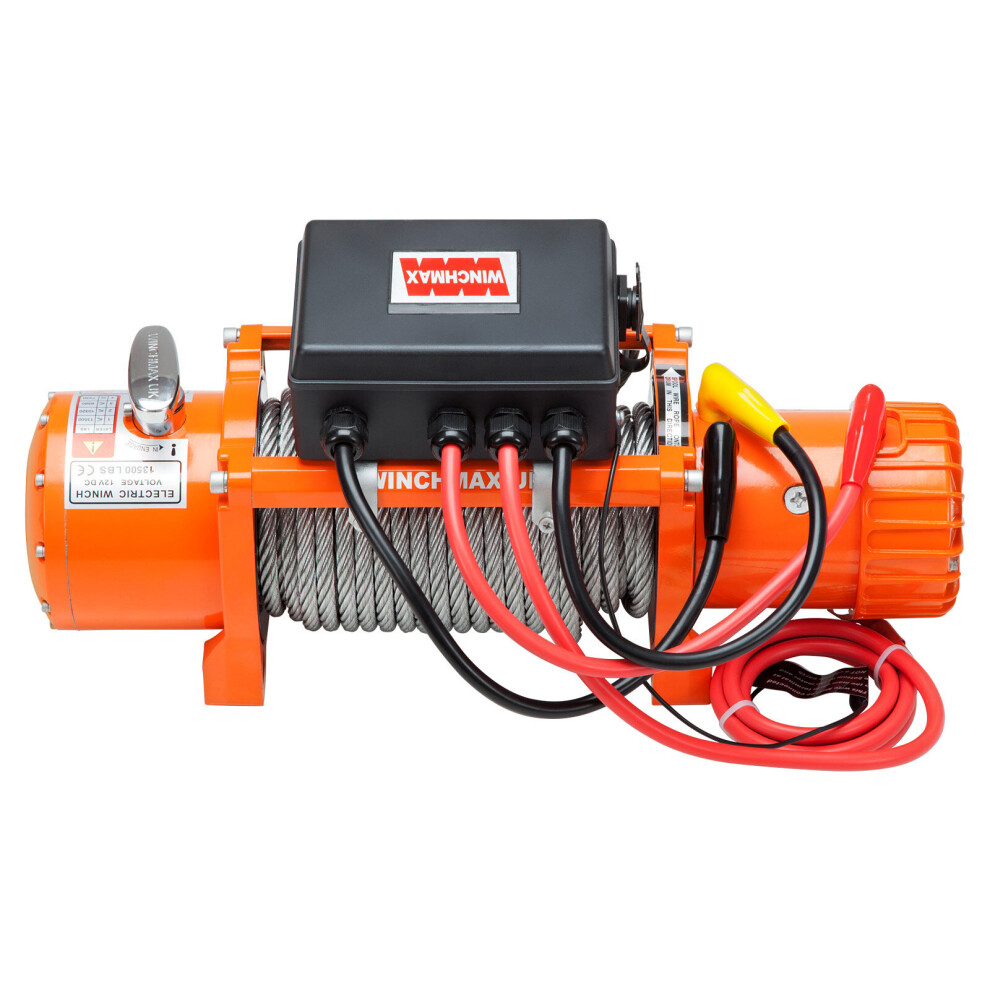

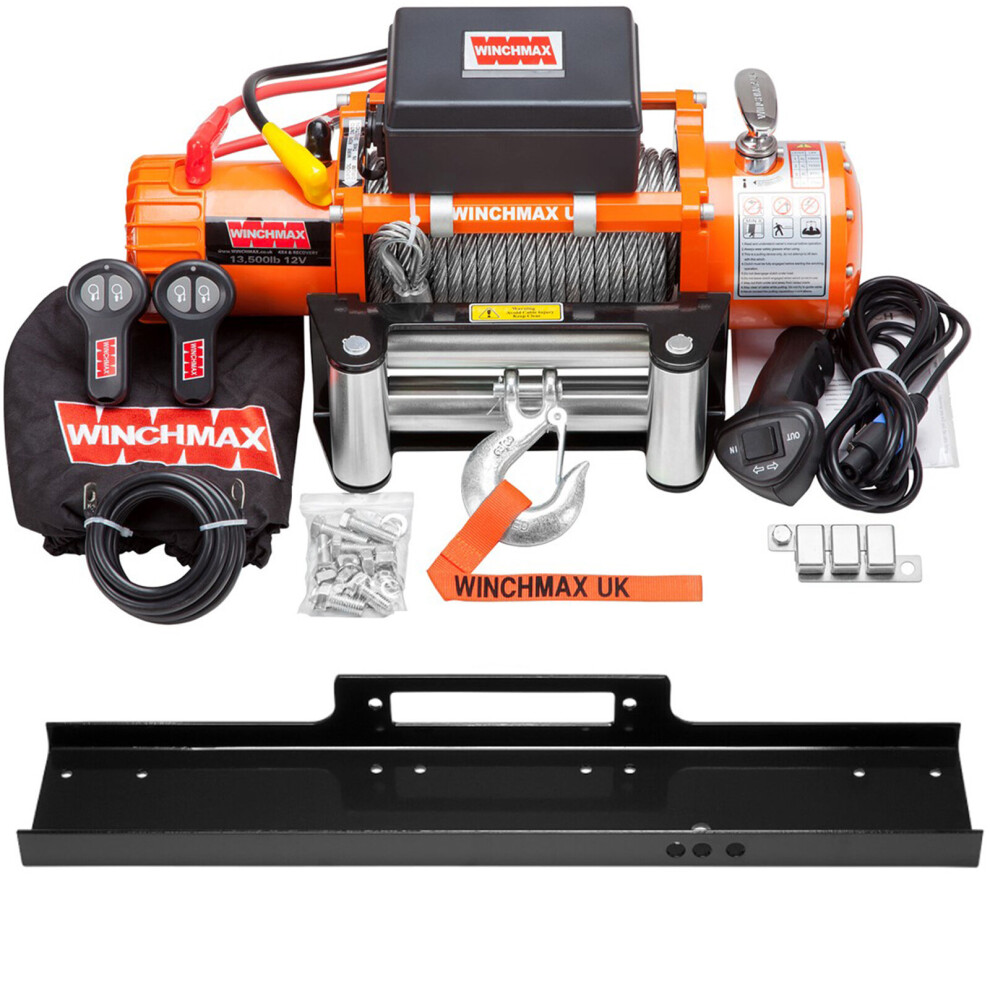

13,500lb (6,123kg) Original Orange 12V Electric Winch, Steel Rope, Flat Bed Mounting Plate, Battery Isolator
Ideal for recovery trucks & trailers up to 3.5T
Features
WINCHMAX Winch
- 13,500lb (6,123kg) straight-line pull 12V electric winch.
- Latest technology long-range wireless remote controls, twin handsets.
- Super powerful 12V 6.8hp/5.1kw series wound electric motor.
- Battery Leads, 2 gauge, 1.83m 25mmsq - 5.6mm dia.
- Massive ultra-tough three-stage gearbox with hardened steel gears.
- Gear Reduction Ratio 265:1
- Motor and gearbox casing machined from billet steel for maximum impact protection.
- 26m x 9.5mm galvanized steel wire rope.
- New ‘through-drum' rope connection with grub screw clamp for ultra-secure rope attachment to drum.
- 3/8 inch Clevis Hook zinc plated for corrosion resistance. G70 grade drop forged steel with safety catch and hand saver.
- Tough four roller fairlead with zinc-plated rollers.
- Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
- Power in/out big grip wander lead with extra-long 4.5m cord.
- Sliding ring gear freewheel clutch.
- High tensile fixing bolt kit.
- Strong WINCHMAX branded cover to protect from water and road grime.
- Heavy-duty & built to last - gross weight 40kg.
- CE certified & built to ISO9001 quality management system requirements.
- No Load Line Speed 6.5 l/min (21.3 ft/min)
WINCHMAX Mounting Plate
- Heavy-duty mounting plate folded, and CNC laser cut from 5mm steel.
- Durable powder-coated finish.
- Pre-drilled for quick, easy, and professional looking installation of winch and fairlead.
- Ideal for flatbed recovery truck and trailer applications.
WINCHMAX heavy-duty battery isolator switch.
- 300A rating.
- Heavy-duty construction.
- 2 x twist and release keys.
- Isolate your winch and keep safety first.
Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
Details
| OPC | P98YJ7Q |
| Brand | WINCHMAX |
| Codes | 3475613922808 (EAN) |
| MPN | WM1350012V,WMMP2 |
| Rank | #22 Garden Winches |
| #589 Garden Power Tools |
Product Images
Detailed Product Information
| Colour | Orange |
|---|
| Material | Steel |
|---|
| Weight | 40kg |
|---|
| Height | 218mm |
|---|
| Length | 536mm |
|---|
| Width | 160mm |
|---|
